SPA General purpose power relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.

Price Term: FOB China port

Payment Term: TT, LC,PAYPAL,WESTERN UNION

OEM ORDER: Acceptance

General purpose power relay: Power Relay

Automotive Relays: Reed Relay

model: SPA

Send email to us Download as PDF

Product Detail

Product Tags

model	SPA

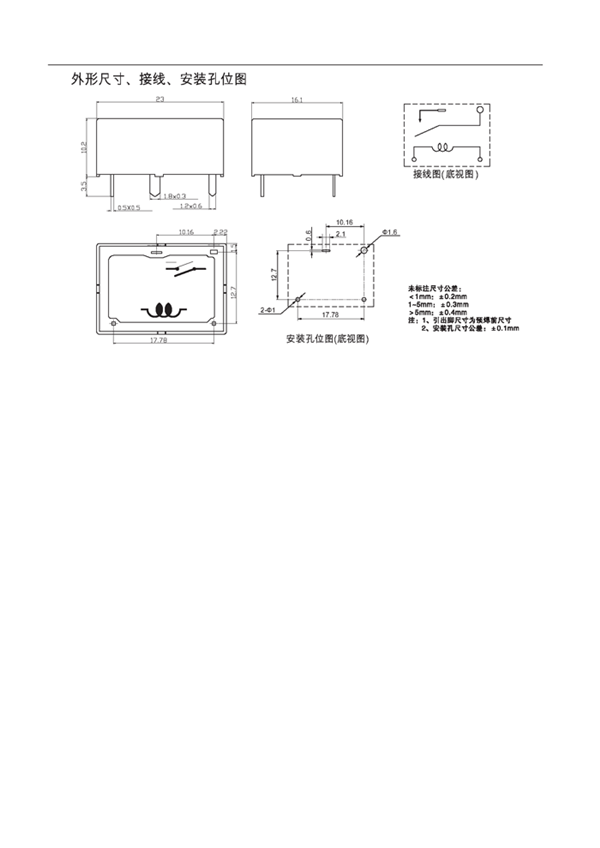

Overall dimension (mm)	23×16.1×10.2
Contact form:	1a
contact rating	16A 250VAC;10A 250VAC;10A 24VDC
Coil power (W)	0.2W,0.34W
Coil voltage (VDC)	3~48VDC
Contact resistance	≤100mΩ
ambient temperature	-40℃~+105℃
Installation form	Printed board, socket type, quick connection type, flange type
