SRG General purpose power relay |

SRG General purpose power relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.

Price Term: FOB China port

Payment Term: TT, LC,PAYPAL,WESTERN UNION

OEM ORDER: Acceptance

General purpose power relay: Power Relay

Automotive Relays: Reed Relay

model: SRG

Send email to us Download as PDF

Product Detail

Product Tags

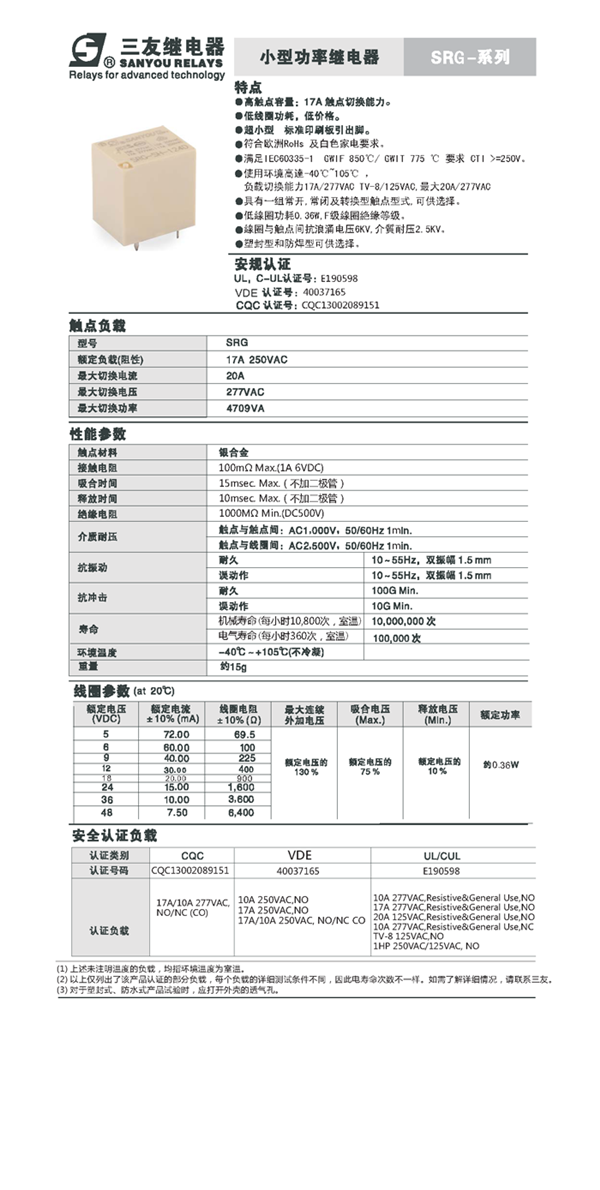

model	SRG

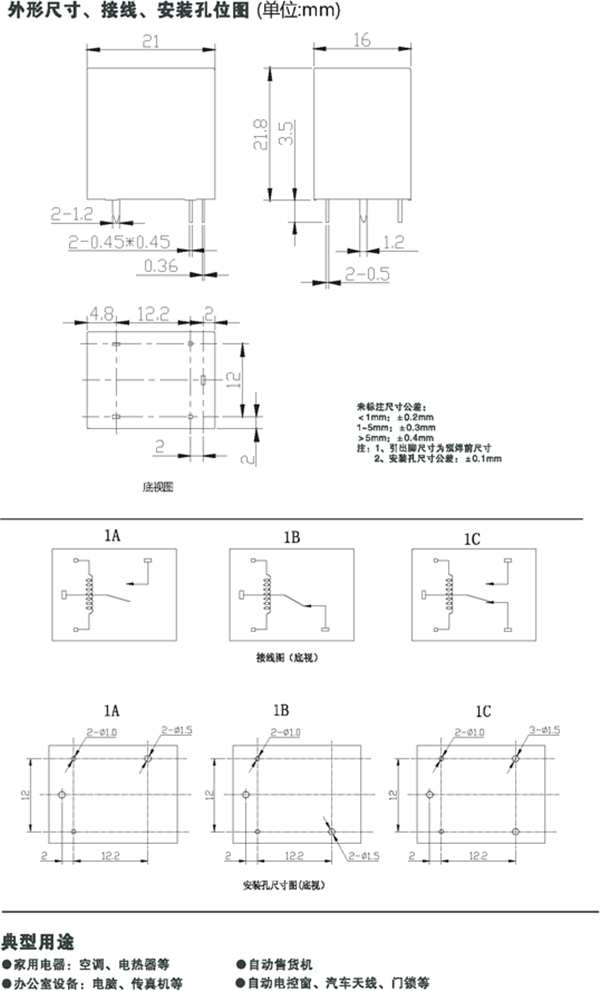

Overall dimension (mm)	21×16×21.8
Contact form:	1a,1b,1c
contact rating	20A 125VAC;17A 277VAC;10A 250VAC;TV-8 125VAC;1HP 125
Coil power (W)	0.36W
Coil voltage (VDC)	5~48VDC
Contact resistance	≤100mΩ
ambient temperature	-40℃~+105℃
Installation form	Printed board, socket type, quick connection type, flange type
