SYM18 Magnetic holding relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.

Price Term: FOB China port

Payment Term: TT, LC,PAYPAL,WESTERN UNION

OEM ORDER: Acceptance

General purpose power relay: Power Relay

Magnetic holding relay: Reed Relay

model: SYM18

Send email to us Download as PDF

Product Detail

Product Tags

model	SYM18

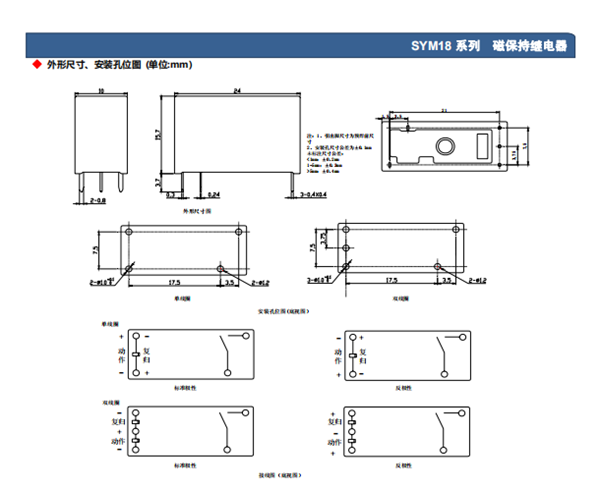

Overall dimension (mm)	24mm×10mm×15.7mm
Contact form:	1a
contact rating	Standard: 16A 277VAC sensitive: 10A 277VAC
Coil power (W)	Sensitive: 0.2w/0.4w; standard: 0.4w/0.6w
Coil voltage (VDC)	03，05，06，09，12，24（VDC）
Contact resistance	100mΩ. Max.(at 1A 6VDC)
ambient temperature	-40 ℃ ~ + 85 ℃ (non condensing)
Installation form	Quick connect
