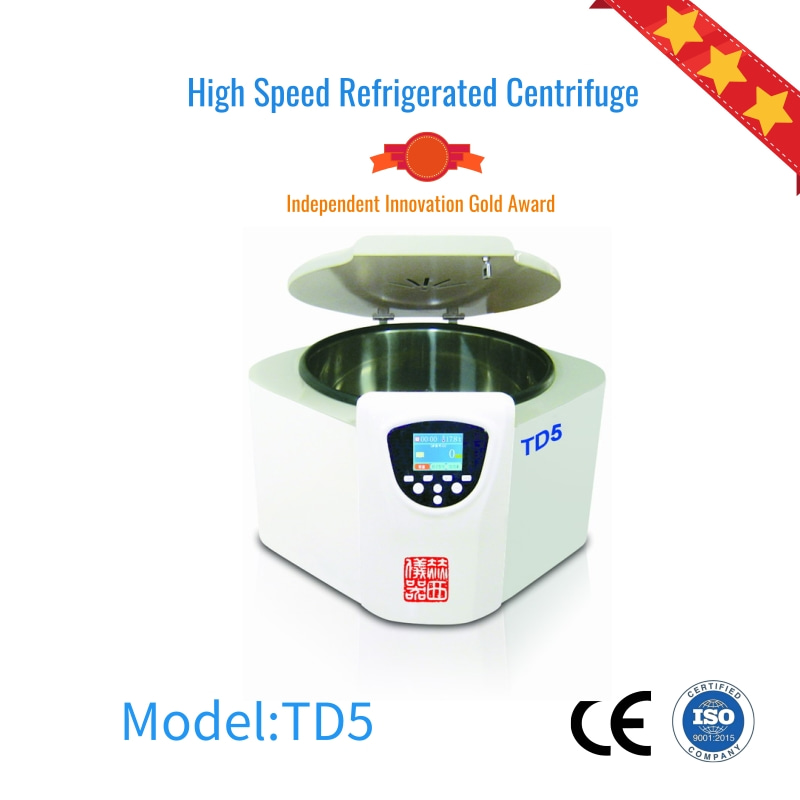

TD5 Bench top large capacity PRP laboratory centrifuge
- This series is widely applied in experiments and scientific researches of various fields such as biochemistry,genetic engineering,forestry science,food safety,blood stations,clinical test,etc.
- Features:
Enhanced ergonomics to achieve a streamline design that is safe,aesthetic and practical.
With TFT true-color LCD wide-screen touch monitor featured by intelligent control,easy and convenient operation,a touch panel and a simultaneous indication of both the set parameters and operation ones.
With a complete steel structure and a stainless steel centrifuge cavity,it is sturdy and durable.
Variable-frequency brushless motor that is maintenance and dust-free.
10 kinds of speed-up and speed-down options.Can store 20 user program which can be directly used by the user.The program previously used with be running when the machine is started.
With a dedicated key indicating the centrifugal force.
With a motor gate lock mute mechanical & electrical integration.
Multiple layers of shock absorbers with the function of automatic balancing to achieve smooth operation.
A variety of swing rotors and angle rotors applicable for universal tubes and microtiter plates to be chosen by customers.Pictures of the rotor can be shown during the operation to make the running more human-centered.
-
Specifications: Model
TD5
Max speed(r/min)
5000
Max RCF(×g)
4800
Max capacity
4×250 ml
Time range
0-99h59min
Operation programme
20
Control and drive system
Frequency motor,micro control,direct drive
Total power
500 w
Noise
≤65 dB
Power
AC220V 50Hz
Weight
35 Kg
dimension(L×W×H)
600×540×360 mm
-

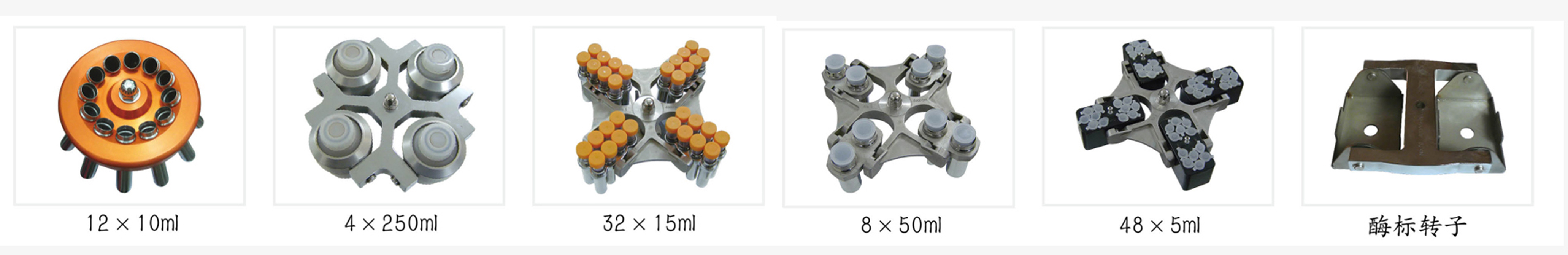

Model Capacity TD5 TD5A Max Speed Max RCF Max speed Max RCF Angle rotor 12×10ml 5500 4328 Swing bucket rotor 4×250ml 4000 3290 4000 3290 12×15ml 5000 4500 24×10ml 5000 4500 8×50ml 4000 2810 32×15ml 4000 2810 32×10ml 4000 2810 4×50ml 5000 4600 5000 4600 4×100ml 5000 4800 5000 4800 16×15ml 4000 2810 48×5ml/2ml(vacuum tube) 4000 2940 4000 2940 76×5ml/2ml(vacuum tube) 4000 3100 4000 3100 Swing micro-plate rotor 2x2x96 hole 4000 2360 4000 2360 Adaptor 8×50ml 24×15ml 32×10ml 40×5ml -
