SMI General purpose power relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.


  • Price Term: FOB China port
  • Payment Term: TT, LC,PAYPAL,WESTERN UNION
  • OEM ORDER: Acceptance
  • General purpose power relay: Power Relay
  • Automotive Relays: Reed Relay
  • model: SMI
  • Product Detail

    Product Tags

    SMI  General purpose power relaySMI  General purpose power relay

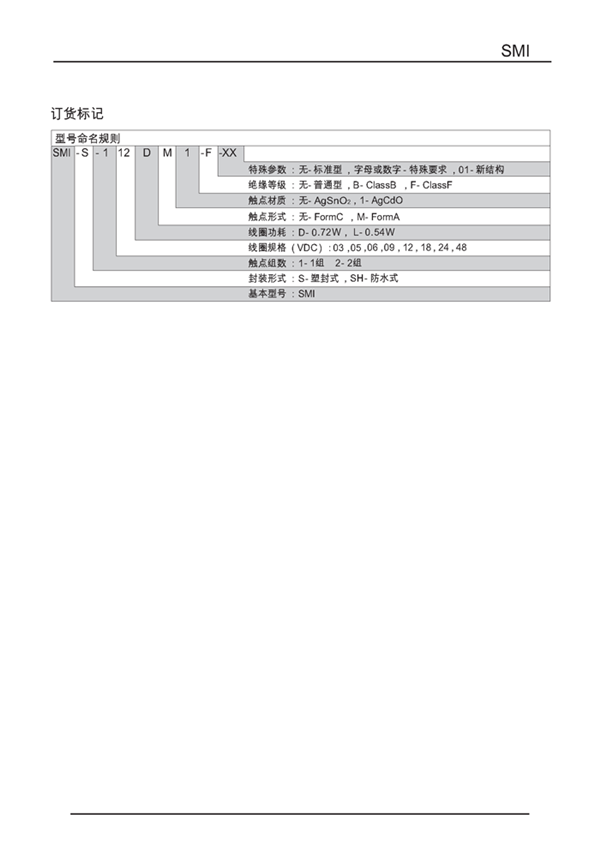

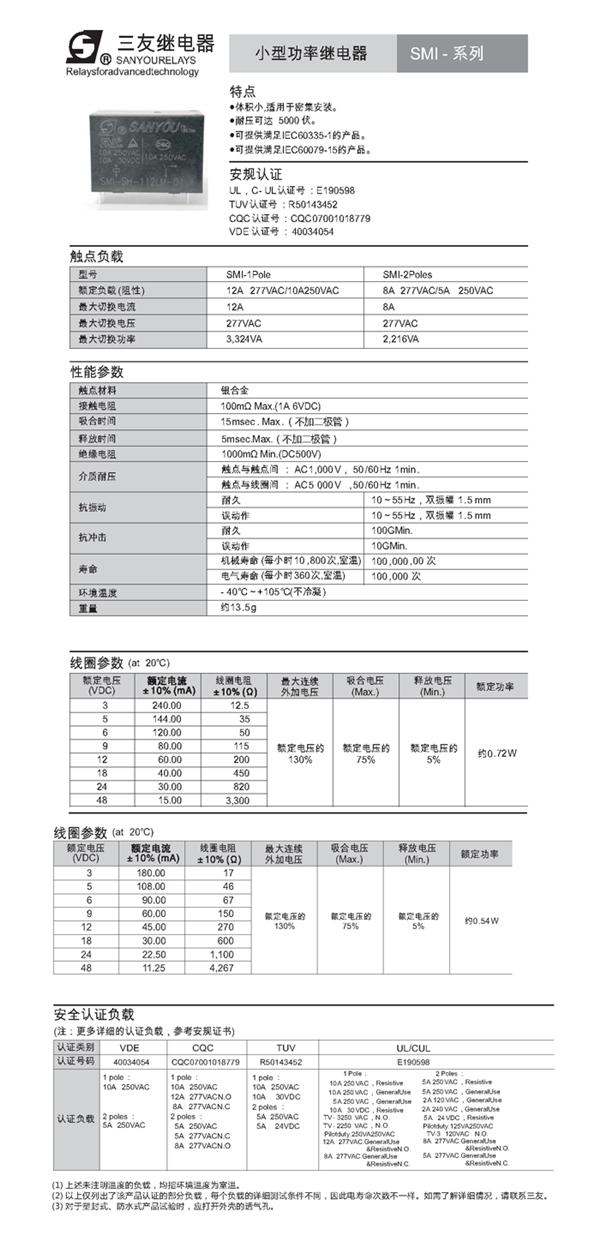

     model SMI
     Overall dimension (mm) 29.2×12.8×20.6
     Contact form: 1a,1c,2a,2c
     contact rating 16A 250VAC;17A 277VAC;20A 120VAC;16A 30VDC;
     Coil power (W) 0.54W,0.72W
    Coil voltage (VDC) 3~48VDC
     Contact resistance  ≤100mΩ
     ambient temperature -40℃~+105℃
     Installation form  Printed board, socket type, quick connection type, flange type
