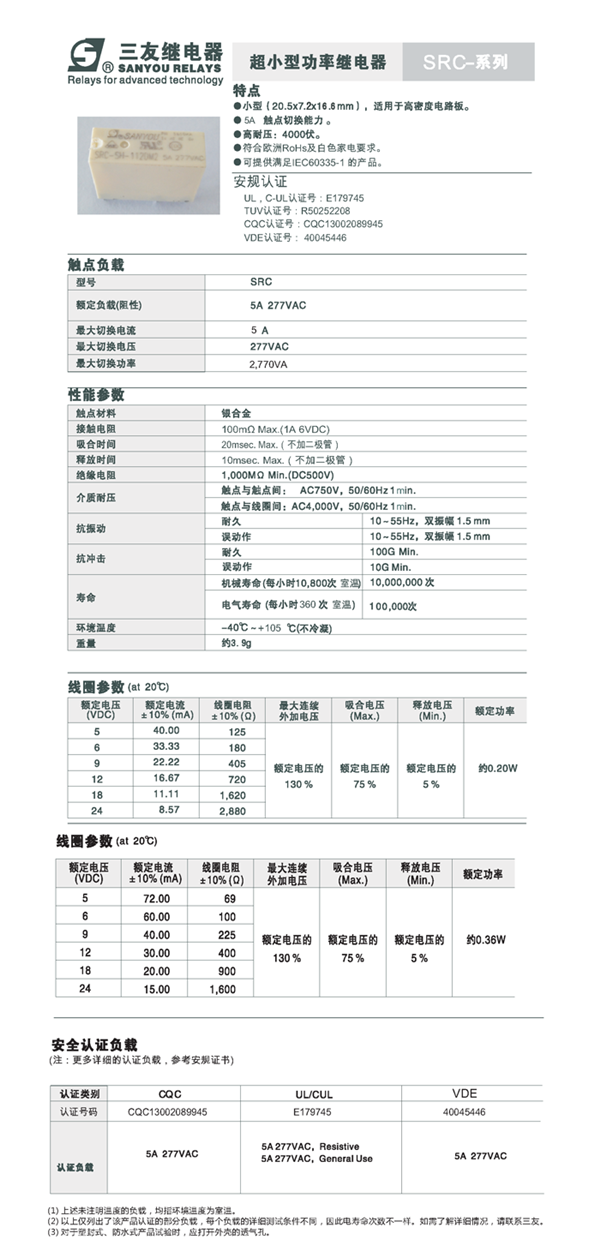

SRC(5A) General purpose power relay
| model | SRC(5A) |
| Overall dimension (mm) | 20.5×7.2×16.5 |
| Contact form: | 1a |
| contact rating |
H:7A 277VAC ; TV-3 120VAC
|
| Coil power (W) | 0.2W,0.36W |
| Coil voltage (VDC) | 5~24VDC |
| Contact resistance | ≤100mΩ |
| ambient temperature | -40℃~+105℃ |
| Installation form | Printed board, socket type, quick connection type, flange type |
