SJE(10A) General purpose power relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.


  • Price Term: FOB China port
  • Payment Term: TT, LC,PAYPAL,WESTERN UNION
  • OEM ORDER: Acceptance
  • General purpose power relay: Power Relay
  • Automotive Relays: Reed Relay
  • model: SJE(10A)
  • Product Detail

    Product Tags

    SJE(10A)  General purpose power relaySJE(10A)  General purpose power relaySJE(10A)  General purpose power relay

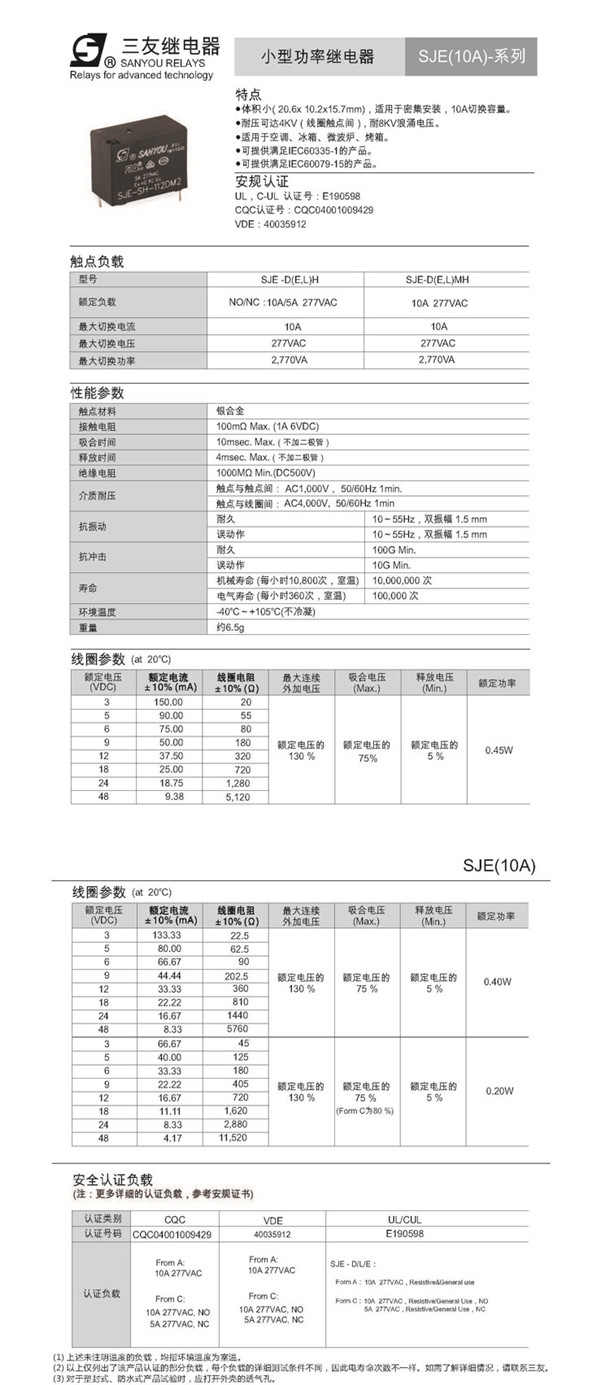

     model SJE(10A)

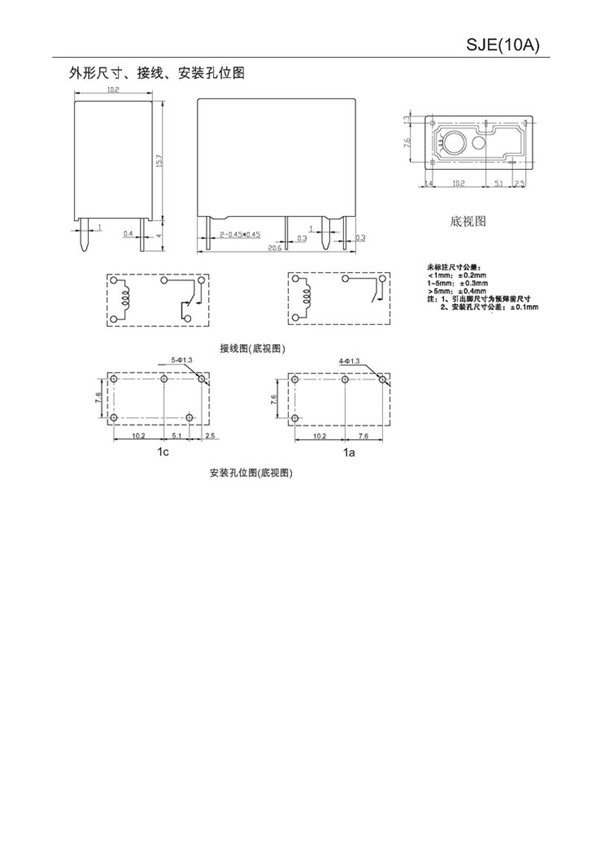

     Overall dimension (mm) 20.6×10.2×15.7
     Contact form: 1a,1b,
     contact rating
    10A 277VAC;5A 30VDC;TV-5 120VAC;1/6HP 277VAC
     Coil power (W) 0.2W,0.4W,0.45W
    Coil voltage (VDC) 3~48VDC
     Contact resistance  ≤100mΩ
     ambient temperature -40℃~+85℃
     Installation form  Printed board, socket type, quick connection type, flange type
