WJ32C Magnetic holding relay |

WJ32C Magnetic holding relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.

Price Term: FOB China port

Payment Term: TT, LC,PAYPAL,WESTERN UNION

OEM ORDER: Acceptance

General purpose power relay: Power Relay

Magnetic holding relay: Reed Relay

model: WJ32C

Brand: SANYOU

Send email to us Download as PDF

Product Detail

Product Tags

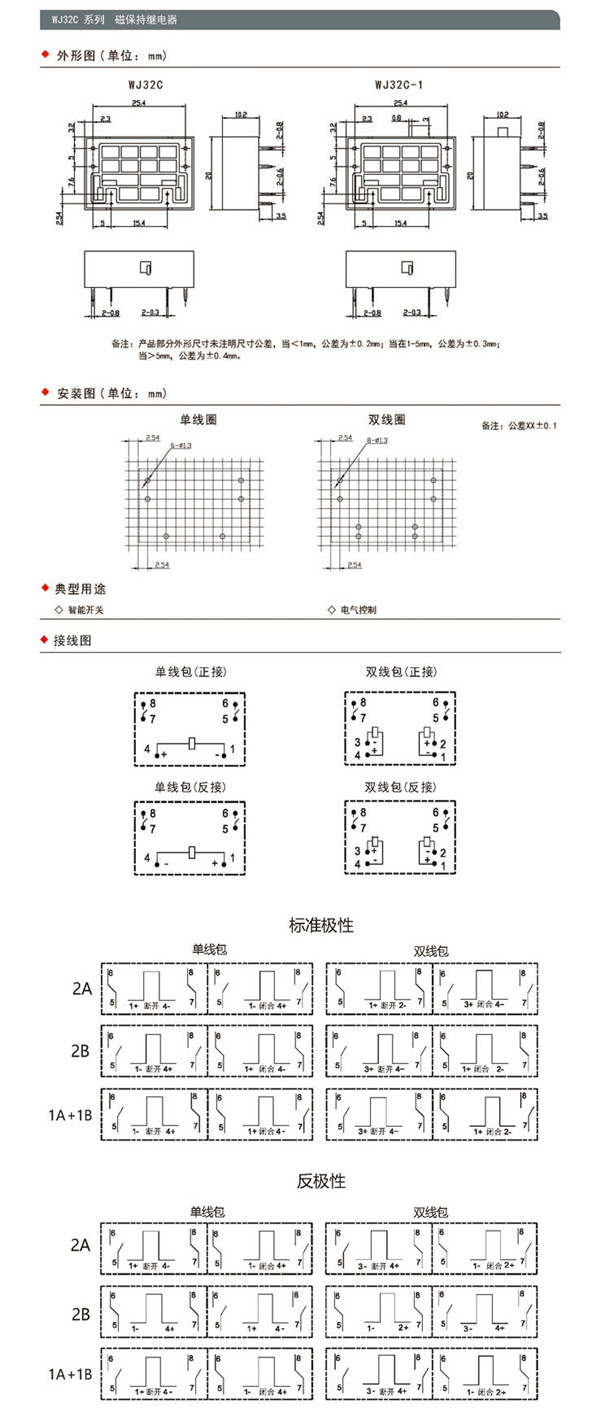

model	WJ32C
Overall dimension (mm)	25.4×20.0×10.2
Contact form:	2a,2b,1a+1b
contact rating	16A 250VDC
Coil power (W)	Single coil: 1W, double coil: 2W
Coil voltage (VDC)	5~48VDC
Contact resistance	≤20mΩ
ambient temperature	-40 ℃ ~ + 85 ℃ (non condensing)
Installation form	Quick connect
