WJ32M Magnetic holding relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.


  • Price Term: FOB China port
  • Payment Term: TT, LC,PAYPAL,WESTERN UNION
  • OEM ORDER: Acceptance
  • General purpose power relay: Power Relay
  • Magnetic holding relay: Reed Relay
  • model: WJ32M
  • Brand: SANYOU
  • Product Detail

    Product Tags

    WJ32M  Magnetic holding relayWJ32M  Magnetic holding relayWJ32M  Magnetic holding relay

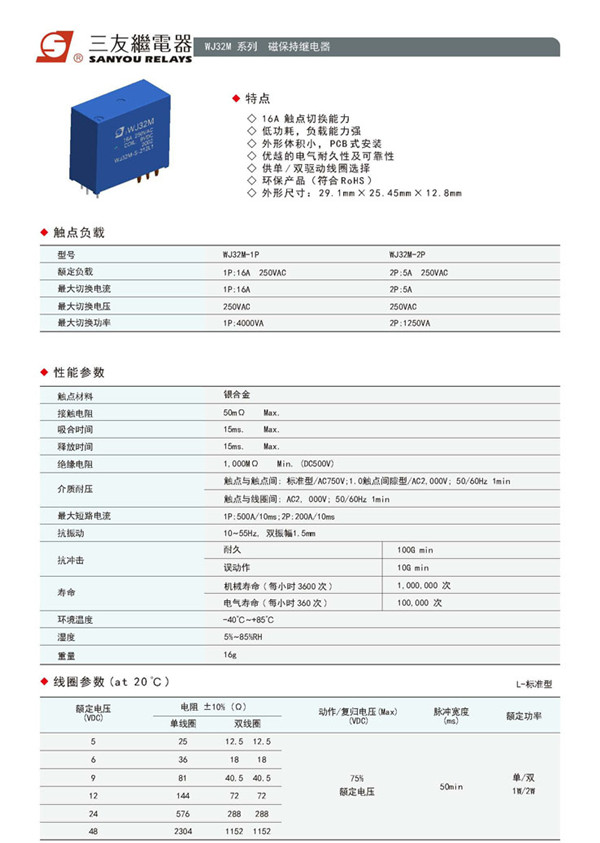

     model WJ32M

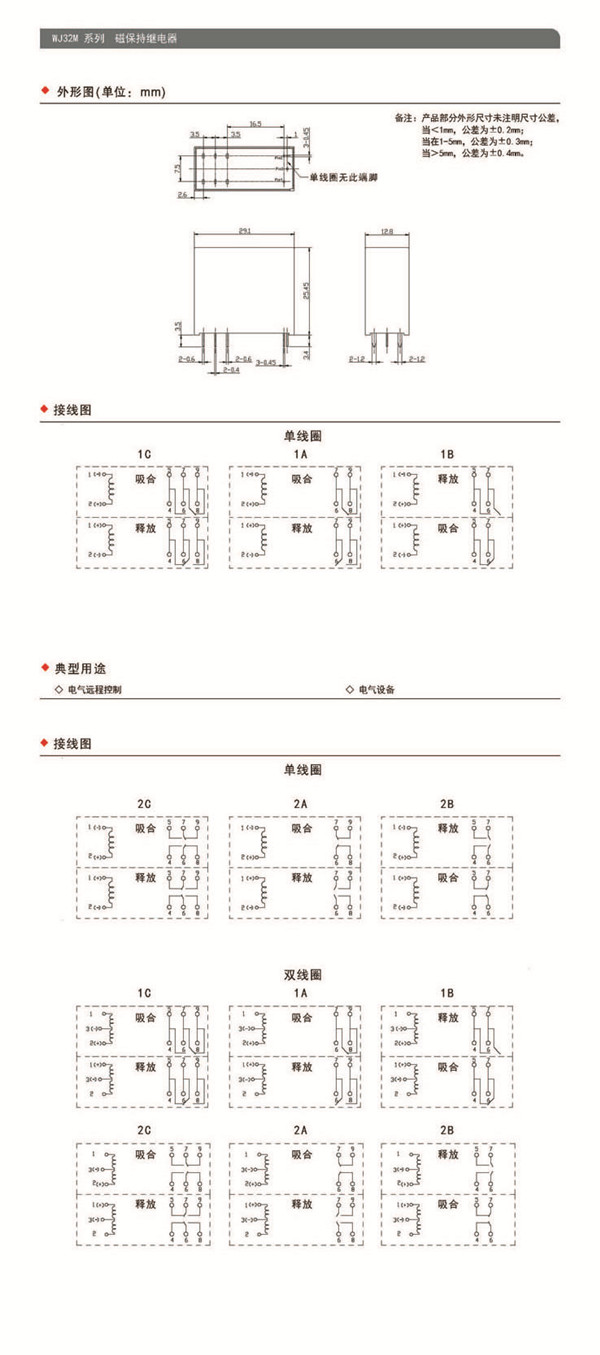

     Overall dimension (mm) 29.1×25.45×12.8
     Contact form: 1a,1b,1c,2a,2b,2c
     contact rating
    16A 250VAC;5A 250VAC
     Coil power (W) Single coil: 1W, double coil: 2W
    Coil voltage (VDC) 5~48VDC
     Contact resistance ≤50mΩ
     ambient temperature -40 ℃ ~ + 85 ℃ (non condensing)
     Installation form  Quick connect
