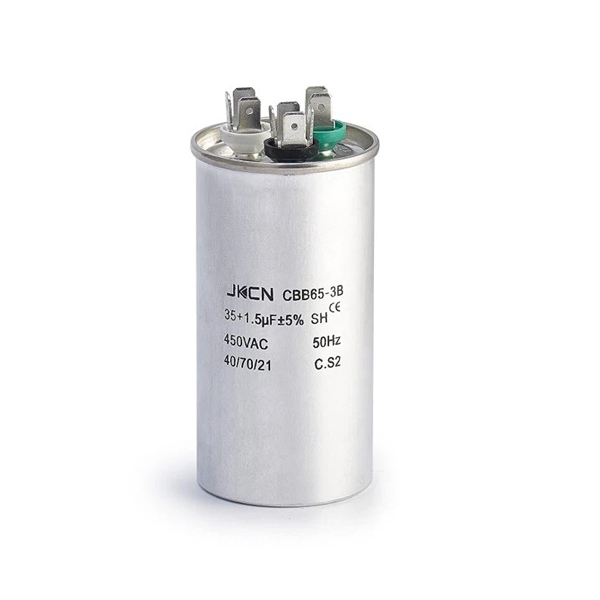

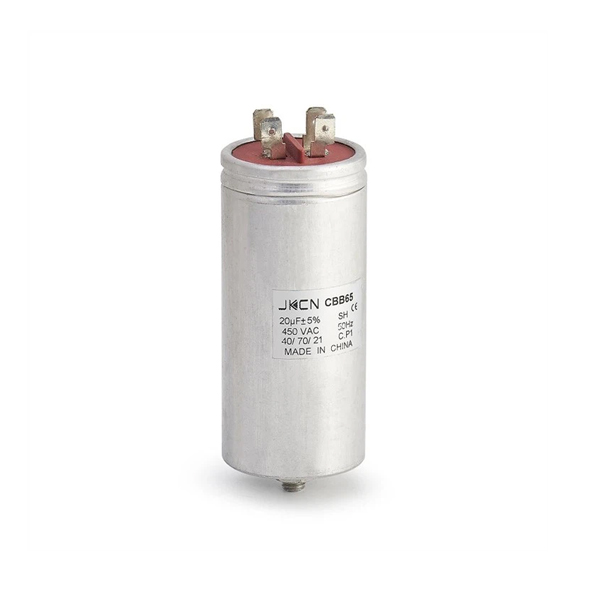

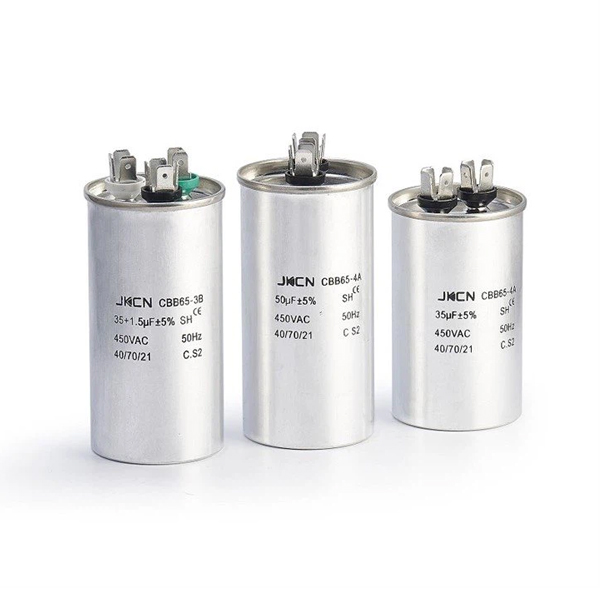

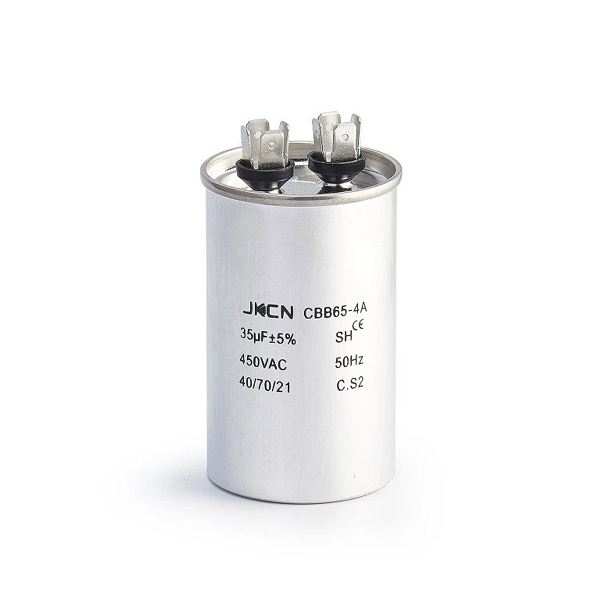

CBB65 Ac Motor Capacitor
CBB65 Ac Motor Capacitor has very small dissipation factor, small inherent temperature rise ，excellent self-healing stability, safety and high reliability ect.
Application
Ac Motor Capacitor use for motor running in house held electric appliances as washing machine, air conditioner Refrigerater 50-60Hz AC power supply.Safe protection construction.
Specifications
| Climatic category | Rate voltage | Voltage proof vt-t | Voltage proof Vt-c | Capacitance tolerance | Dissipation factor |
| 40/70/21 40/85/21 40/90/21 40/105/21 |
110V. AC-600V.AC | 1.5Un/5S 1.75Un/5S 2Un/5S |
2000V.AC/5S | ±3% ±5% ±10% |
≤0.002 |
| Capacitance range | Dimensions | Reference standard | Certification | Class of operation | Safety grade |
| 3 μF-120 μF | D:Φ42-Φ60 W:51.5(71) H:60-240 T:31.5(45) |
UL810 IEC252 GB3667 EN60252 |
UL CE |
A30000h B10000h C3000h |
P2 |
Dimensions (mm)
| Capacitance
CBB65 |
Round Shape Dimension in mm | |
| φD | L | |
| 5MFD | 42 | 70 |
| 6MFD | 42 | 70 |
| 8MFD | 42 | 70 |
| 10MFD | 42 | 70 |
| 12.5MFD | 42 | 70 |
| 16MFD | 42 | 90 |
| 18MFD | 42 | 90 |
| 20MFD | 45 | 90 |
| 25MFD | 45 | 90 |
| 30MFD | 50 | 110 |
| 35MFD | 50 | 110 |
| 40MFD | 50 | 110 |
| 45MFD | 50 | 110 |
| 50MFD | 50 | 110 |
| 55MFD | 60 | 110 |
| 60MFD | 60 | 110 |
| 70MFD | 60 | 110 |
| 80MFD | 60 | 110 |
