CBB61 Capacitors,Fan Run Capacitor

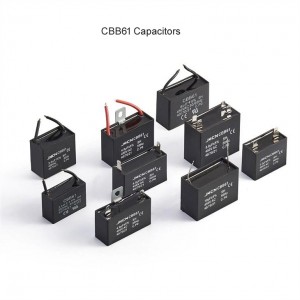

CBB61 capacitors are primarily a type of film capacitor used for **starting and running single-phase motors**. When common household appliances like electric fans or air conditioning fan motors break down, it is often due to a faulty CBB61 capacitor. They are wound from metallized polypropylene film and feature good self-healing properties and low loss, helping motors start smoothly and operate stably.
Features
Fan run capacitor has small size, reliable electric performance, self-healing, canned epoxyimpregnant structure.
Technical Specification
Rated voltage: 250~450VAC
Rated capacitance: 1 F~24 F
Executive standard: GB36671-997
Technical features:
Climate type: 40/70/21
Capacitance tolerance: ±5%
I.R: ≥3000MΩ·μF
Dielectric dissipation factor: tgδ≤0.002 (50Hz-100Hz)
Application requirements
a. Altitude: ≤2000m
b. Residual voltage while loading: less than 10%of rated voltage
c. Allowed max. Voltage: less than 1.1 time rated voltage
d. Permissible max. Current: less than 1.3 time rated current.
Dimensuions(mm)
| Rated Voltage(VAC)CBB61 | Capacitance (μF） | Height(mm) | Attention | ||
| L±1 | B±1 | H±1 | |||
| 450 | 1 | 36.5 | 11 | 24.5 | Single ear of basement |
| 1.5 | 36.5 | 11 | 24.5 | ||
| 2 | 36.5 | 16 | 29.5 | ||
| 3 | 38 | 20 | 30 | ||
| 3.5 | 38 | 20 | 30 | ||
| 5 | 47 | 20 | 37.5 | ||
| 6 | 47 | 20 | 37.5 | ||
| 10 | 47 | 25 | 42.5 | Square cover | |
| 20 | 58 | 31 | 57 | ||
