SEC150 Green energy relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.


  • Relays: Automotiveelectromagnetic Relay
  • Auto Relay: Hot selling automobile relay
  • Brand: SANYOU
  • model: SEC150
  • Product Detail

    Product Tags

    SEC150  Green energy relaySEC150  Green energy relaySEC150  Green energy relay

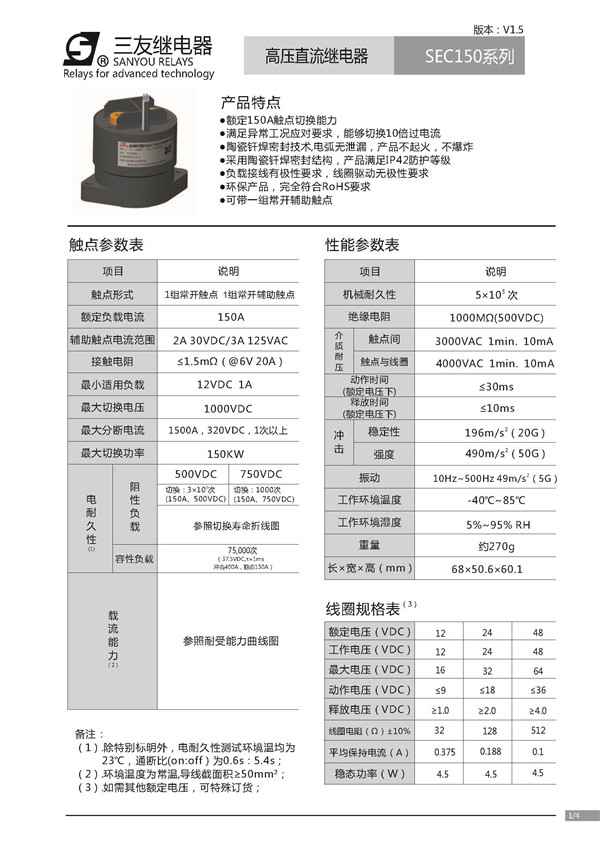

     model SEC150

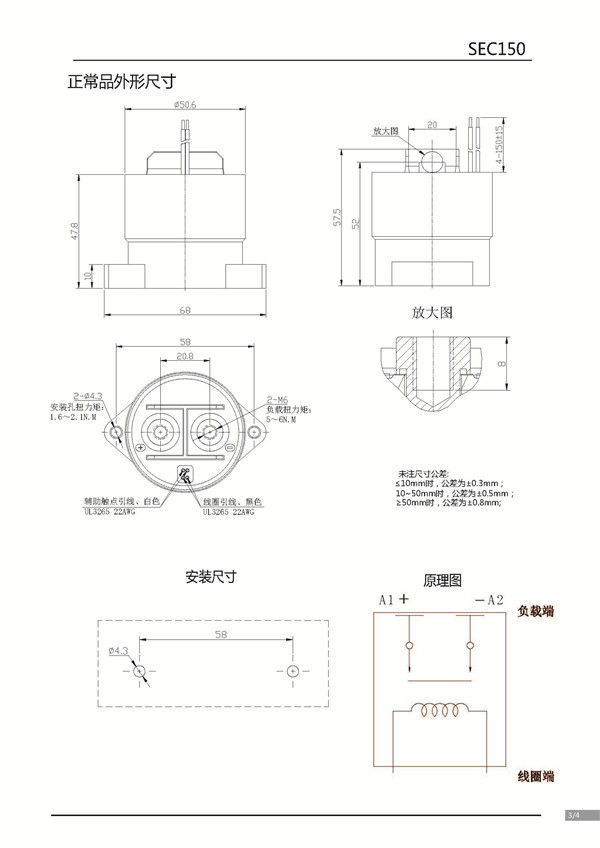

     Overall dimension (mm) 68×50.6×60.1
     Contact form: 1a
     contact rating
    150A 1000VDC
     Coil power (W) 4.5W
    0.8WCoil voltage (VDC) 12~48VDC
     Contact resistance ≤1.5mΩ(@6V 20A)
     ambient temperature -40℃~+85℃
     Installation form  Printed board, socket type
