SRD General purpose power relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.


  • Price Term: FOB China port
  • Payment Term: TT, LC,PAYPAL,WESTERN UNION
  • OEM ORDER: Acceptance
  • General purpose power relay: Power Relay
  • Automotive Relays: Reed Relay
  • model: SRD
  • Product Detail

    Product Tags

    SRD  General purpose power relaySRD  General purpose power relaySRD  General purpose power relay

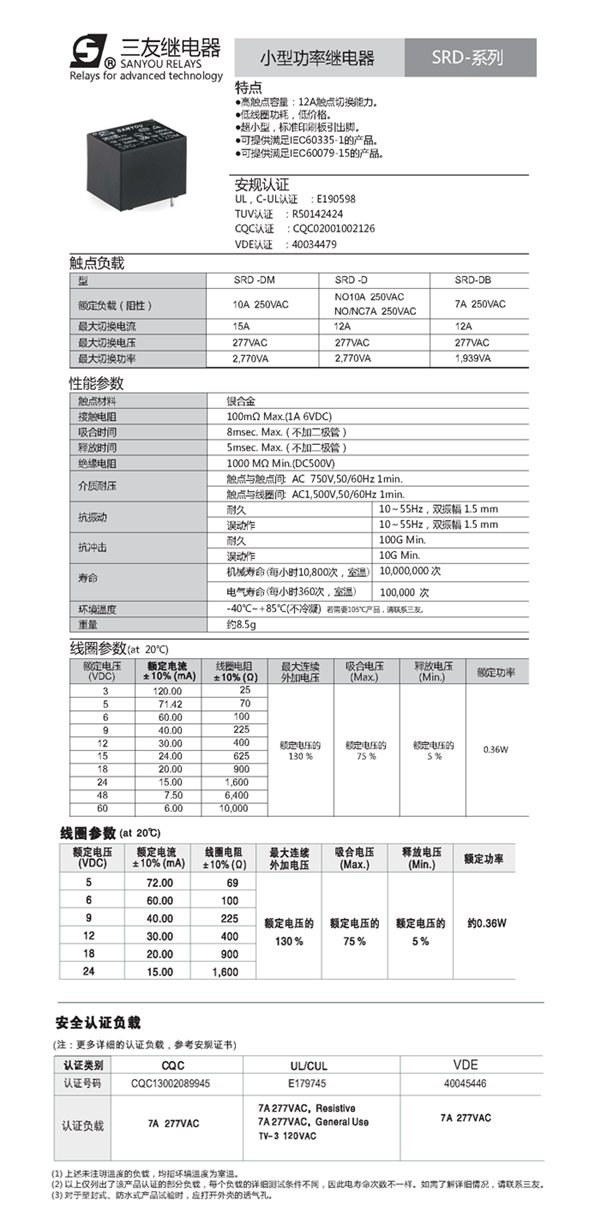

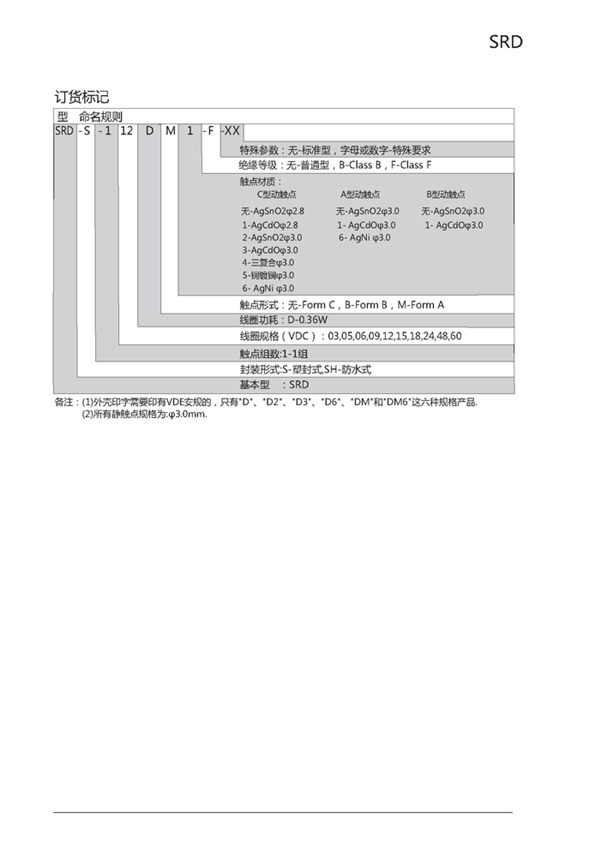

     model SRD

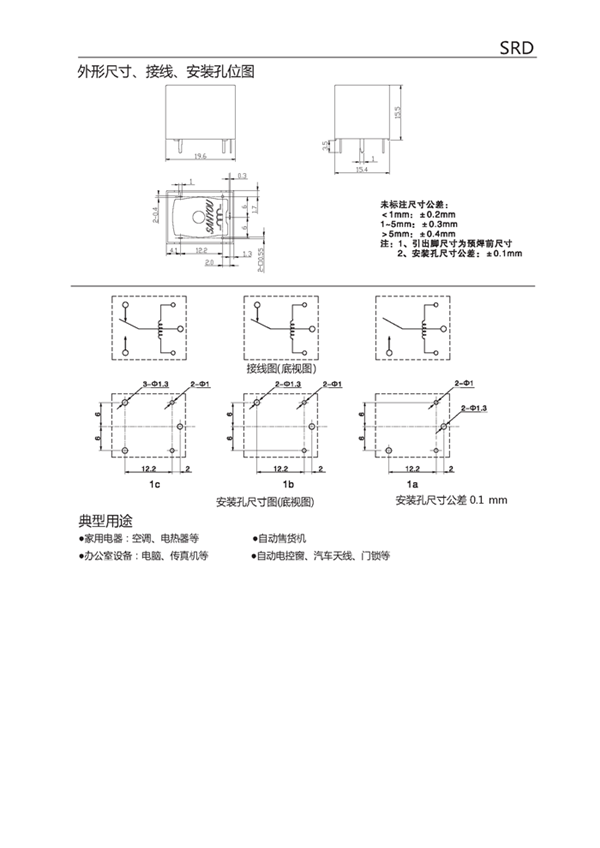

     Overall dimension (mm) 19.6×15.4×15.5
     Contact form: 1a,1b,1c
     contact rating
    15A 125VAC;10A 250VAC;10A 28VDC;TV-5 120VAC,N.O.;1/3HP 250VAC
     Coil power (W) 0.36W
    Coil voltage (VDC) 3~60VDC
     Contact resistance  ≤100mΩ
     ambient temperature -40℃~+85℃
     Installation form  Printed board, socket type, quick connection type, flange type
