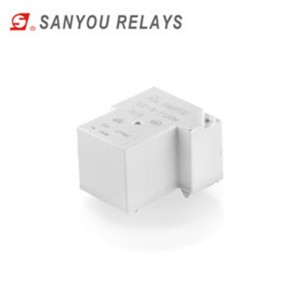

SLE Green energy relay
| model | SLE |

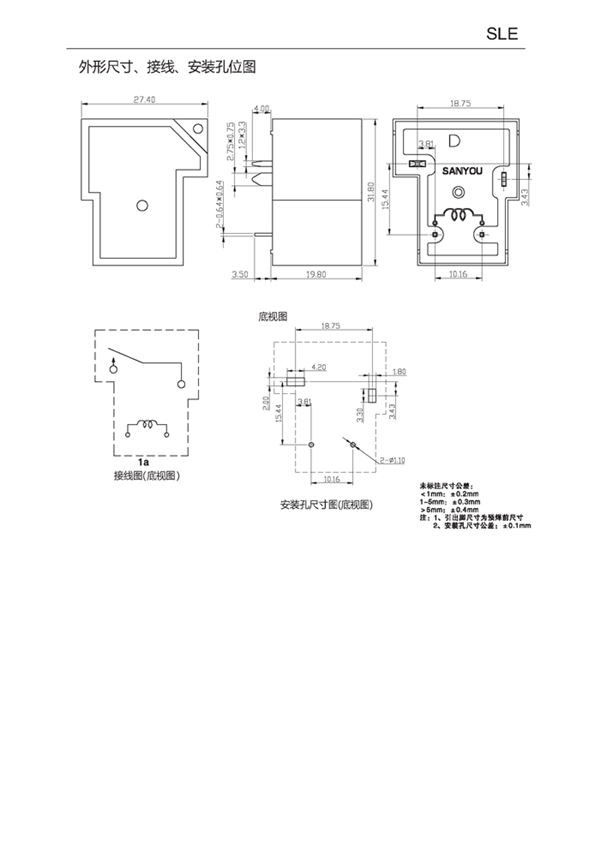

| Overall dimension (mm) | 31.8×27.4×19.8 |
| Contact form: | 1a |
| contact rating | 35A 277VAC |
| Coil power (W) | 0.9W,2.25W |
| 0.8WCoil voltage (VDC) | 12~24VDC |
| Contact resistance | ≤100mΩ |
| ambient temperature | -40℃~+85℃ |
| Installation form | Printed board, socket type |
