SPV150 Green energy relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.


  • Relays: Automotiveelectromagnetic Relay
  • Auto Relay: Hot selling automobile relay
  • Brand: SANYOU
  • model: SPV150
  • Product Detail

    Product Tags

    SPV150  Green energy relaySPV150  Green energy relaySPV150  Green energy relay

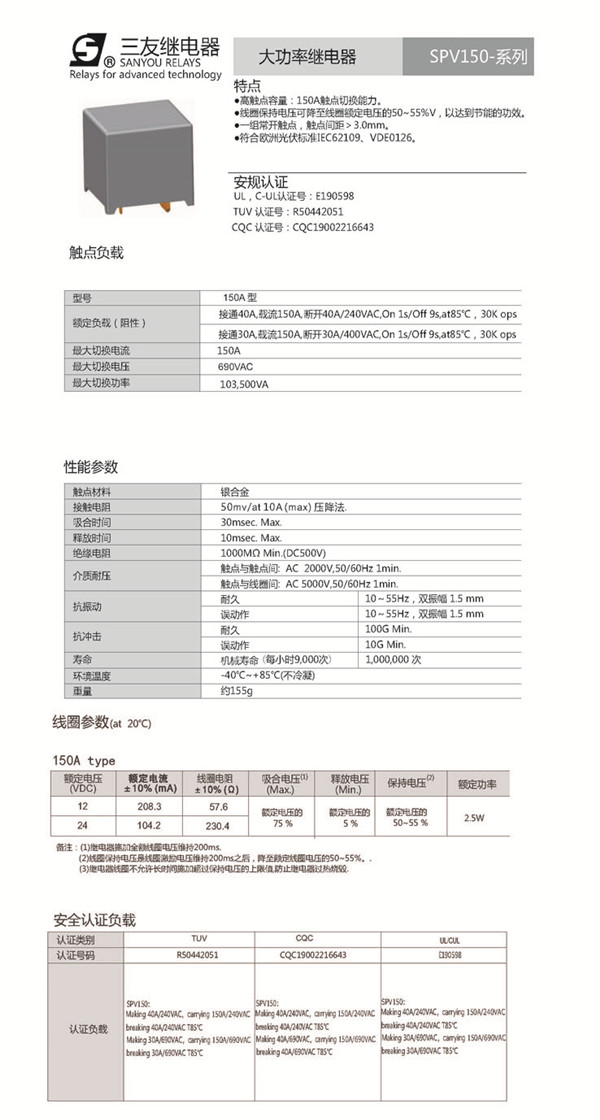

     model SPV150

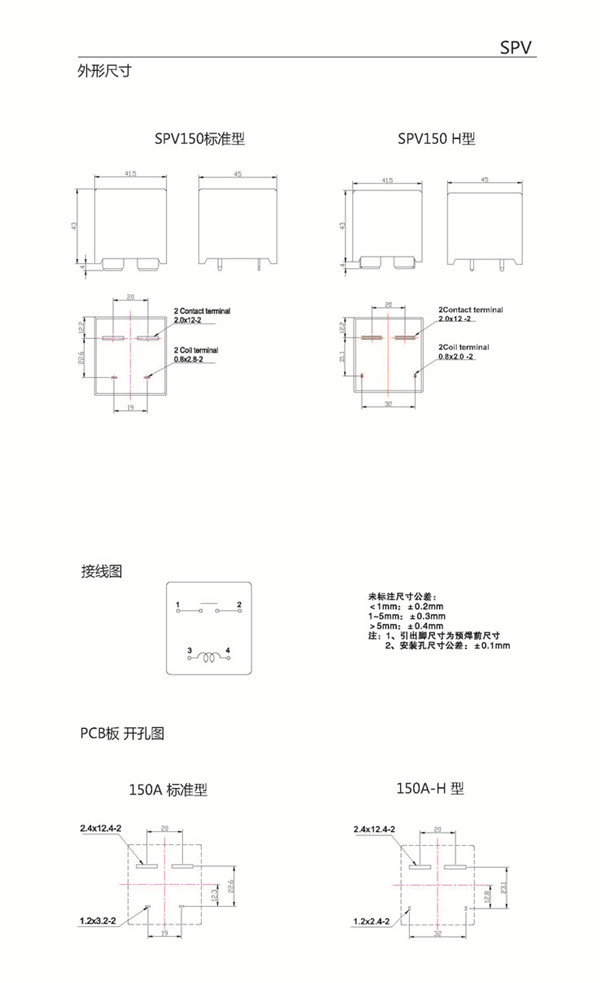

     Overall dimension (mm) 45×41.5×43
     Contact form: 1a
     contact rating
    On: 30A; off: 150A; off: 30A 690vac
     Coil power (W) Starting power: 2.5W, holding power: 0.62w
    0.8WCoil voltage (VDC) 12~24VDC
     Contact resistance ≤50mV (@10A)
     ambient temperature -40℃~+85℃
     Installation form  Printed board, socket type
