SYS1K High quality communication relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.


  • Relays: Automotiveelectromagnetic Relay
  • Auto Relay: Hot selling automobile relay
  • Brand: SANYOU
  • model: SYS1K
  • Product Detail

    Product Tags

    SYS1K  High quality communication relaySYS1K  High quality communication relay

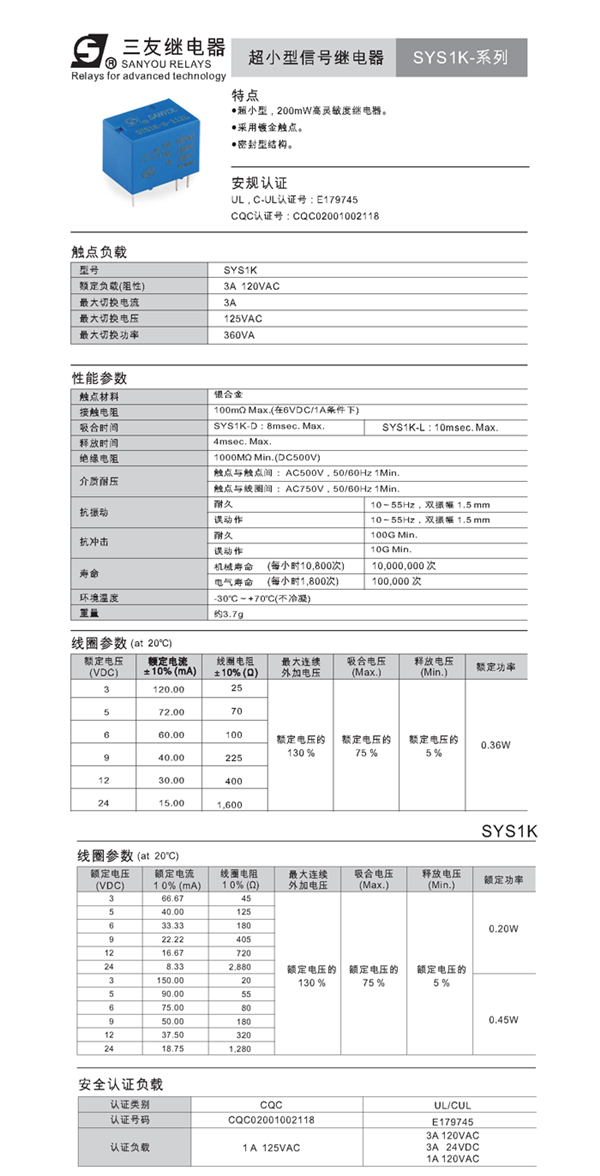

     model SYS1K
     Overall dimension (mm) 15.4×10.4×11.4
     Contact form: 1c
     contact rating
    3A 120VAC;3A 24VDC;1A 120VAC
     Coil power (W) 0.20, 0.36, 0.45
    0.8WCoil voltage (VDC) 3-24VDC
     Contact resistance ≤100mΩ
     ambient temperature -30℃~+70℃
     Installation form  Printed board, socket type
