WJ31J Magnetic holding relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.


  • Price Term: FOB China port
  • Payment Term: TT, LC,PAYPAL,WESTERN UNION
  • OEM ORDER: Acceptance
  • General purpose power relay: Power Relay
  • Magnetic holding relay: Reed Relay
  • model: WJ31J
  • Brand: SANYOU
  • Product Detail

    Product Tags

    WJ31J  Magnetic holding relayWJ31J  Magnetic holding relayWJ31J  Magnetic holding relay

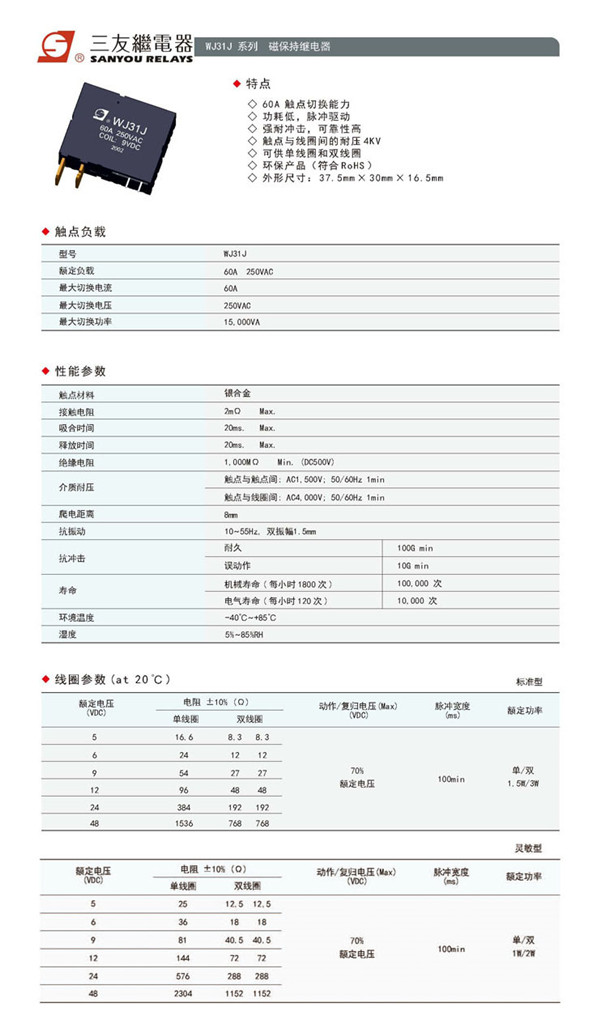

     model WJ31J

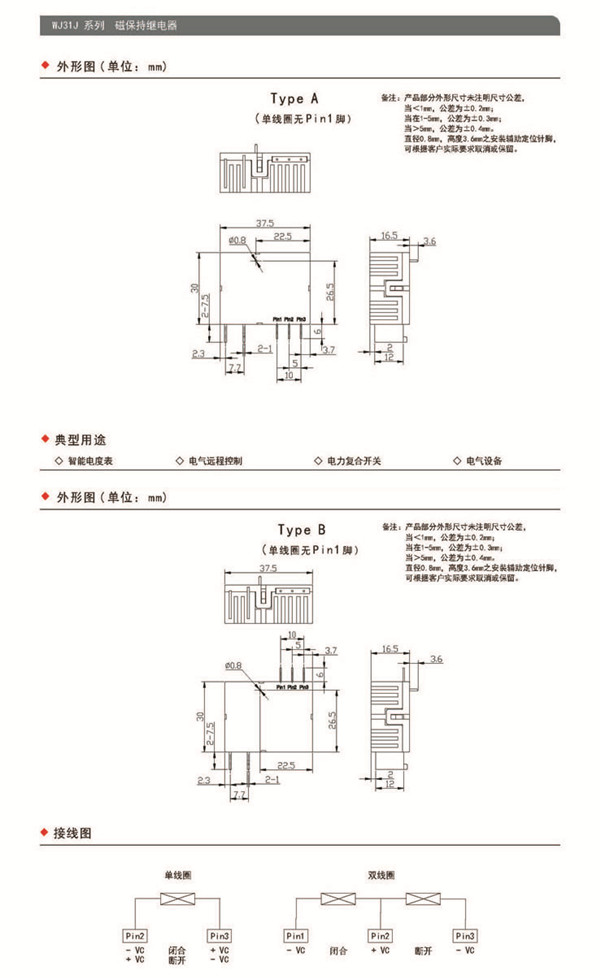

     Overall dimension (mm) 37.5×30×16.5
     Contact form: 1a,1b
     contact rating
    60A 250VAC
     Coil power (W) Single coil: 1.5W, double coil: 3W
    Coil voltage (VDC) 5~48VDC
     Contact resistance ≤2mΩ
     ambient temperature -40 ℃ ~ + 85 ℃ (non condensing)
     Installation form  Quick connect
