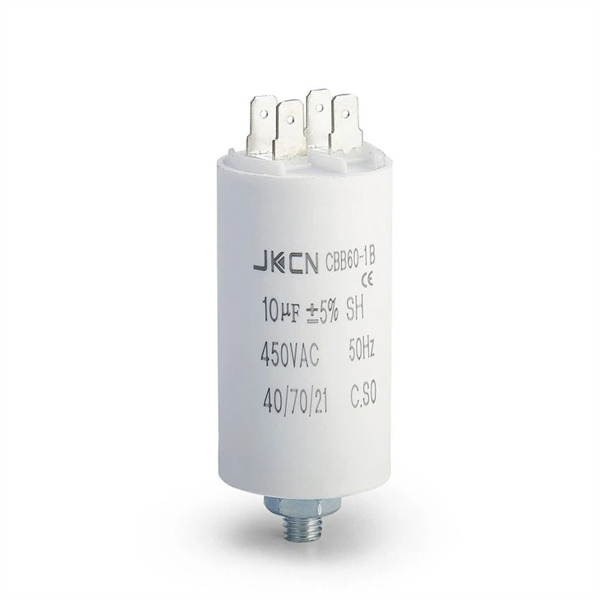

CBB60 Ac Motor Run Capacitor |

CBB60 Ac Motor Run Capacitor

Short Description:

Ac Motor Run Capacitor has features of small size, light weight, small tangent in waste angle, and good self-healing. Applicable to start and operation with 50/60Hz A.C. Single motor, specially suit for micro pump, baric pump, micro motor and so on.

Model: CBB60

MOQ: 1000PCS

Brand: JK

Origin: Made In China

Send email to us Download as PDF

Product Detail

Product Tags

Applications

JK series Ac Motor Run Capacitor has features of small size, light weight, small tangent in waste angle, and good self-healing. Applicable to start and operation with 50/60Hz A.C. Single motor, specially suit for micro pump, baric pump, micro motor and so on.

Service Conditions

1. Altitude: the altitude of area of installation and operation not exceeding 2000m.

2. Residual voltage at energization: Not to exceed 10% rated voltage.

3. Pollution: No electric dust, no corrosive as or inflammable and explosive medium in the area of installation and operation.

4. Operation temperature : -40℃~+70℃.

5. Operation way: Continuous operation.

Manufacturing

Self-healing metallized polypropylene film capacitors.

Non inductive winding.

Wound capacitor elements fully immersed into resin.

Self-extinguishing plastic case.

Extinguishing plastic case.

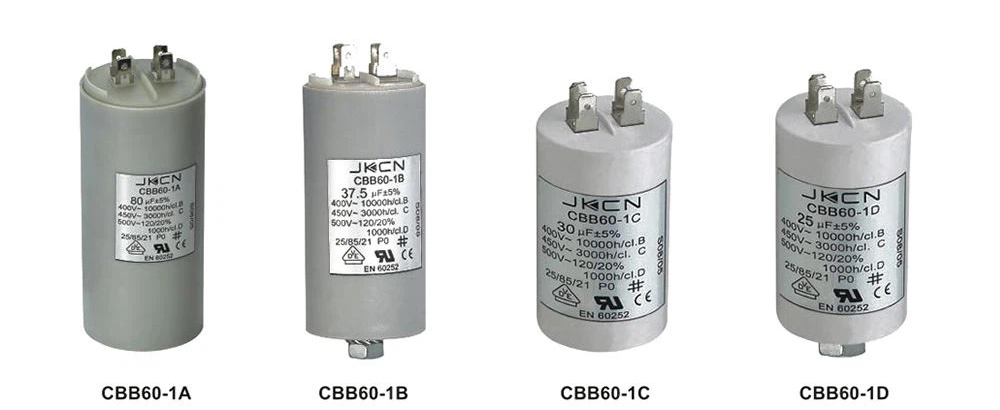

Executions:

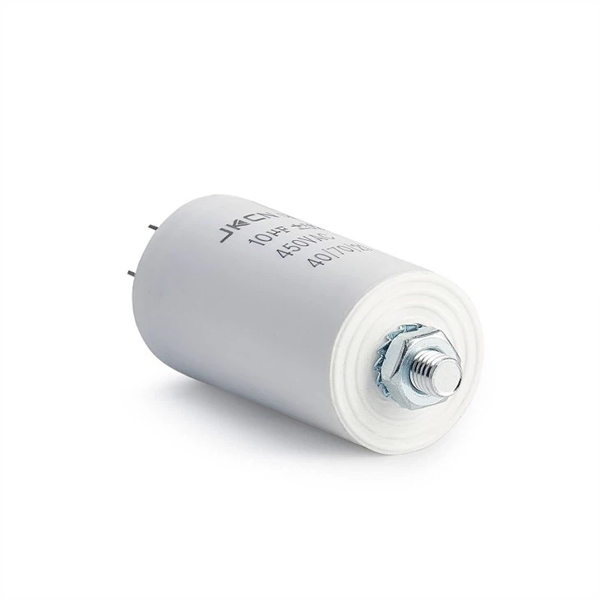

Flat bottom-metal fixing stud M8×12

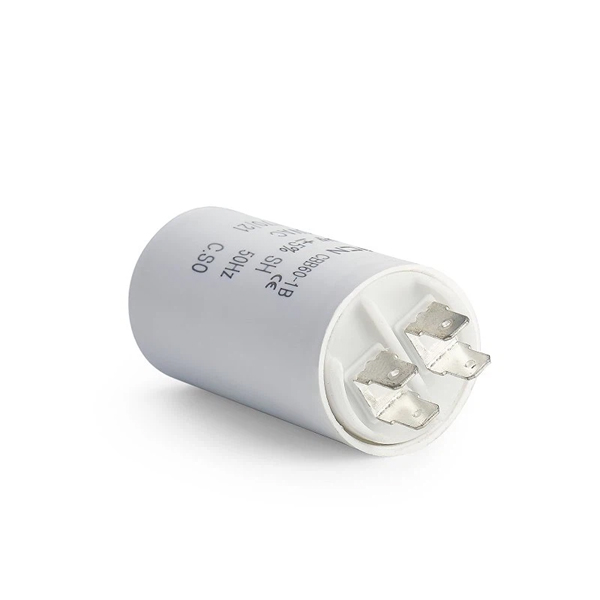

Faston terminals 0.8×6.35 simple or double

Standard distance P=13.2mm±0.5

Uniplar cable-bipplar cable

Discharge resistance-plastic cover

Main Technical Indexes

1. Range voltage: 200VAC, 250VAC, 400VAC, 450VAC, 500VAC.

2. Rated frequency: 50Hz(60Hz).

3. Rated capacitance: 1.0μF-60μF.

4. Withstand AC voltage between terminals: 1.75 times than rated voltage for 2 seconds

5. Withstand AC voltage between terminal and case: 2000VAC for 2 seconds.

6. Capacitance tolerance: Cn±5%.

7. Tangent of loss angle(tgδ): tgδ≤0.10%(50Hz).

8. Maximum permissible voltage : 110% rated voltage.

9. Maximum permissible current: 130% rated current.

10. Class of safety protection: P0(type CBB60, CBB61), P1(type CBB65).

11. Design service life: 3,000 hours (class C)

12. Ac Motor Run Capacitor Standard: in conformity with GB3667-1997, IEC60252-1993

Specification:

Voltage (VAC)	Nominal Capacity( μ F)	DxL(mm)	DxL(mm)	DxL(mm)	DxL(mm)
250-450	2.5	32×55	32×55	30×55	30×55
	3	32×55	32×55	30×55	30×55
	3.5	32×55	32×55	30×55	30×55
	4	32×55	32×55	30×55	30×55
	4.5	32×55	32×55	30×55	30×55
	5	32×55	36×58	30×55	36×58
	5.5	32×55	36×58	30×55	36×58
	6	32×55	36×58	30×55	36×58
	7	36×58	36×70	36×58	36×70
	8	36×58	36×70	36×58	36×70
	9	36×58	36×70	36×70	36×70
	10	36×58	36×70	36×70	36×70
	11	36×70	36×70	36×70	36×70
	12	36×70	36×70	36×70	36×70
	12.5	36×70	36×70	36×70	36×70
	14	36×70	36×70	36×70	36×70
	15	40×70	40×70	40×70	40×70
	16	40×70	40×70	40×70	40×70
	18	40×70	40×70	40×70	40×70
	20	40×70	40×70	40×70	40×70
	22	40×70	40×70	40×70	40×70
	25	45×75	45×75	45×75	45×75
	30	45×75	45×75	45×75	45×75
	35	45×92	45×92	45×92	45×92
	40	45×92	45×92	45×92	45×92
	45	50×90	50×90	50×90	50×90
	50	50×90	50×90	50×90	50×90
	60	55×117	55×117	55×117	55×117
	70	55×117	55×117	55×117	55×117
	80	60×117	60×117	55×132	55×132
	90	60×117	60×117	55×132	55×132
	100	60×117	60×117	55×132	55×132
